Consul on Amazon ECS 0.5 Supports AWS IAM and Mesh Gateways

The latest version of HashiCorp Consul on Amazon ECS adds support for AWS IAM authentication and mesh gateways.

We are pleased to announce that HashiCorp Consul on Amazon Elastic Container Service (ECS) 0.5 is now generally available. This release adds support for authenticating services and clients using AWS Identity and Access Management (IAM) identities. The new release also adds support for mesh gateways, which enable services to communicate across multiple runtimes and clouds and reduces risk for organizations by enforcing consistent end-to-end security for service communication.

»Using AWS IAM Identities with Consul on ECS

With Consul on ECS, each ECS task includes sidecar containers that run alongside your application, including a Consul client container and an Envoy proxy container. These sidecars require two Consul ACL (access control list) tokens that authorize the task to join the Consul cluster and register as a Consul service:

  • Client token: Used by the Consul client container to join the Consul cluster
  • Service token: Used by other sidecar containers for service registration and health syncing

In previous versions of Consul on ECS, the client and service tokens were created by a service called an ACL controller and stored in AWS Secrets Manager. This model was slower due to its reliance on polling to discover new services to target for token creation, and it required the use of AWS Secrets Manager as part of the process.

A new Consul AWS IAM auth method was added in Consul 1.12, which introduced the option of using AWS IAM identities for authenticating to Consul to receive Consul ACL tokens. Consul on ECS 0.5 adds support for this authentication method for ECS workloads. This new authentication option eliminates the need to periodically poll services for token creation, as authentication takes place when services start up. And instead of relying on AWS Secrets Manager for token storage, ACL tokens are now stored on a shared Consul volume.

»Cross-Datacenter Consul on ECS with Mesh Gateways

The ability for service mesh traffic to communicate across Consul datacenters and Consul Admin Partitions (as well as the ability for Consul datacenters to be federated across wide area networks, or WANs) was introduced as part of Consul 1.6's mesh gateway feature, and we’ve now added this functionality to Consul on ECS 0.5. You can enable mesh gateways for Consul on ECS by adding the gateway-task module to your Terraform configuration, which creates an Amazon ECS service to run one or more instances of the gateway.

TLS encryption on your Consul server cluster is required for Consul datacenter federation over a WAN, and as with prior versions of Consul on ECS, the ACL controller needs to be deployed so that it can provision the necessary tokens for tasks on the service mesh as well as the mesh gateway.

»Configuring the IAM Auth Method for Consul on ECS

If you use the Terraform modules for Consul on ECS, the ACL controller will configure the AWS IAM auth method on the Consul servers with sensible defaults. Here is an example of how to launch the ACL controller with Terraform:

When the ACL controller starts up, it configures the IAM auth method on the Consul servers. The code snippet below shows the default value for the iam_role_path variable. This tells the ACL controller to configure the auth method to allow IAM roles at the path /consul-ecs/ to login.

module "acl_controller" {
  source = "hashicorp/consul-ecs/aws//modules/acl-controller"
  version = "0.5.0"
  consul_bootstrap_token_secret_arn = aws_secretsmanager_secret.bootstrap_token.arn
  consul_server_http_addr = hcp_consul_cluster.this.consul_private_endpoint_url
  name_prefix             = "example"
  iam_role_path           = "/consul-ecs/"
  ...
}
module "acl_controller" {
  source = "hashicorp/consul-ecs/aws//modules/acl-controller"
  version = "0.5.0"
  consul_bootstrap_token_secret_arn = aws_secretsmanager_secret.bootstrap_token.arn
  consul_server_http_addr = hcp_consul_cluster.this.consul_private_endpoint_url
  name_prefix             = "example"
  iam_role_path           = "/consul-ecs/"
  ...
}

Now you can deploy an application to the service mesh using the mesh-task Terraform module. The mesh-task module creates the ECS task definition and the associated IAM role. The IAM role is placed at the /consul-ecs/ path. This role path matches the ACL controller so the role is permitted to login to the IAM auth method on the Consul servers.

module "example_app" {
  source        = "hashicorp/consul-ecs/aws//modules/mesh-task"
  family        = "example-app"
  iam_role_path = "/consul-ecs/"
  ...
  acls                       	= true
  tls                        	= true
  consul_server_ca_cert_arn  	= aws_secretsmanager_secret.consul_ca_cert.arn
  gossip_key_secret_arn      	= aws_secretsmanager_secret.gossip_key.arn
}
module "example_app" {
  source        = "hashicorp/consul-ecs/aws//modules/mesh-task"
  family        = "example-app"
  iam_role_path = "/consul-ecs/"
  ...
  acls                       	= true
  tls                        	= true
  consul_server_ca_cert_arn  	= aws_secretsmanager_secret.consul_ca_cert.arn
  gossip_key_secret_arn      	= aws_secretsmanager_secret.gossip_key.arn
}

When the ECS task starts up, it runs the consul login command. This command presents the task’s IAM role to the auth method on the Consul servers. The auth method validates the role with AWS. If the auth method determines the IAM role is valid and the role is permitted to log in, then an ACL token is returned to the task.

»Configuring Consul Mesh Gateways on ECS

You can use the gateway-task Terraform module to add mesh gateways to the Consul service mesh to allow cross-datacenter or cross-partition communication over a WAN. This section presents an example of how to use Terraform to deploy mesh gateways on ECS to enable WAN federation of two Consul datacenters via mesh gateways.

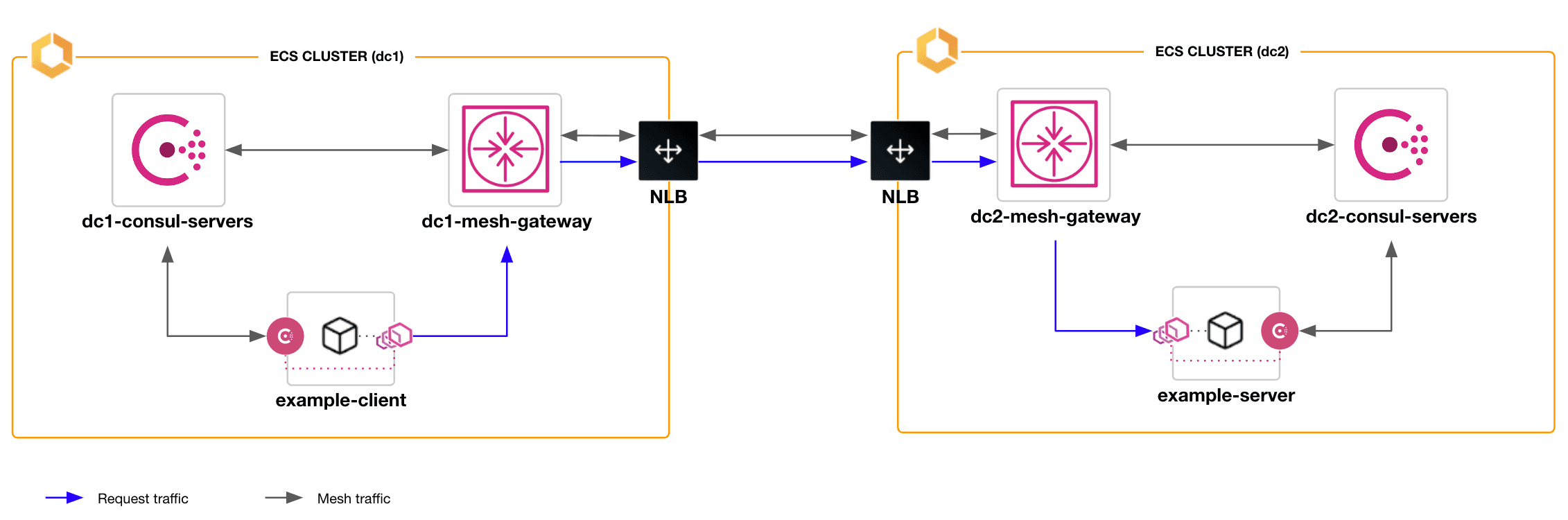

Consul mesh gateways in ECS clusters

First, the primary datacenter must have a mesh gateway running to allow the secondary datacenter to communicate with the primary datacenter. The snippet below deploys the mesh gateway for the primary datacenter (“dc1”) using the gateway-task Terraform module. The mesh gateway must be reachable over the WAN. The example uses the optional lb_enabled = true setting to automatically create and configure a network load balancer to provide ingress to the mesh gateway over the WAN:

module "dc1_mesh_gateway" {
  source                             = "../../../modules/gateway-task"
  kind                               = "mesh-gateway"
  family                             = "dc1-mesh-gateway"
  ecs_cluster_arn                    = aws_ecs_cluster.dc1.arn
  consul_datacenter                  = "dc1"
  consul_primary_datacenter          = "dc1"
  enable_mesh_gateway_wan_federation = true
  enable_acl_token_replication       = true
  lb_enabled                         = true

  ...
}
module "dc1_mesh_gateway" {
  source                             = "../../../modules/gateway-task"
  kind                               = "mesh-gateway"
  family                             = "dc1-mesh-gateway"
  ecs_cluster_arn                    = aws_ecs_cluster.dc1.arn
  consul_datacenter                  = "dc1"
  consul_primary_datacenter          = "dc1"
  enable_mesh_gateway_wan_federation = true
  enable_acl_token_replication       = true
  lb_enabled                         = true

  ...
}

The Consul servers in the secondary datacenter must be configured with the primary_gateways field to enable WAN-federation via mesh gateways. The example below shows how to retrieve the wan_address and wan_port outputs from the dc1_mesh_gateway module to configure the primary_gateways field in the secondary datacenter:

primary_gateways = ["${module.dc1_mesh_gateway.wan_address}:${module.dc1_mesh_gateway.wan_port}"]
primary_gateways = ["${module.dc1_mesh_gateway.wan_address}:${module.dc1_mesh_gateway.wan_port}"]

After the Consul servers in the secondary datacenter have started, we can deploy a mesh gateway in the secondary datacenter. The following example shows the Terraform configuration for the mesh gateway in the secondary datacenter (“dc2”). This is the same as the configuration for the primary mesh gateway except for the family, ecs_cluster_arn, and consul_datacenter fields.

module "dc2_mesh_gateway" {
  ...
  family                             = "dc2-mesh-gateway"
  ecs_cluster_arn                    = aws_ecs_cluster.dc2.arn
  consul_datacenter                  = "dc2"
  consul_primary_datacenter          = "dc1"
  ...
  }
module "dc2_mesh_gateway" {
  ...
  family                             = "dc2-mesh-gateway"
  ecs_cluster_arn                    = aws_ecs_cluster.dc2.arn
  consul_datacenter                  = "dc2"
  consul_primary_datacenter          = "dc1"
  ...
  }

The final mesh-task code snippet below configures the client application task in the secondary datacenter to call the server application in the primary datacenter. The meshGateway stanza in the upstreams definition configures the Envoy proxy to route the requests through the mesh gateway in the local datacenter.

module "example_client" {
  source                       = "hashicorp/consul-ecs/aws//modules/mesh-task"
  family                       = "example-client"
  consul_datacenter            = "dc2"
  consul_primary_datacenter    = "dc1"
  enable_acl_token_replication = true
  upstreams = [
    {
      destinationName =  "example-server"
      datacenter      = "dc1"
      meshGateway = {
        mode = "local"
      }
      ...
    }
  ]
  ...
}
module "example_client" {
  source                       = "hashicorp/consul-ecs/aws//modules/mesh-task"
  family                       = "example-client"
  consul_datacenter            = "dc2"
  consul_primary_datacenter    = "dc1"
  enable_acl_token_replication = true
  upstreams = [
    {
      destinationName =  "example-server"
      datacenter      = "dc1"
      meshGateway = {
        mode = "local"
      }
      ...
    }
  ]
  ...
}

Once this configuration is applied, the mesh gateways will start and register in their respective datacenters, and service mesh traffic will flow through the mesh gateways. All network traffic that passes through the mesh gateway is encrypted using mTLS. Mesh gateways do not decrypt the data within mTLS sessions so all service mesh traffic stays encrypted between the source and the destination.

»Try Consul on ECS 0.5 Now

To learn more, please see HashiCorp Consul’s AWS ECS documentation, which includes step-by-step instructions for moving existing applications to the service mesh, along with detailed architectural information.

Finally, this webinar on Securely Modernize Application Development with Consul on AWS ECS, now available on demand, is a great resource to learn about existing features and the 2022 roadmap from the team behind HashiCorp Consul on ECS.
