Unlocking the Cloud Operating Model with Microsoft Azure
May 20, 2020
Achieving the fastest path to value in a modern, hybrid-cloud environment.
Setting the stage. The shift from a static to dynamic environment
HashiCorp and Microsoft talk to organizations of all sizes about their infrastructure plans, and how they’re adopting the new cloud operating model as they navigate the transition to building new applications to differentiate their business. For most enterprises, digital transformation efforts mean delivering new business and customer value more quickly, and at a very large scale. The implication for Enterprise IT is navigating the shift from cost optimization models to speed-optimization models. The cloud is an inevitable part of this shift as it presents the opportunity to rapidly deploy on-demand services with limitless scale, to unlock the fastest path to value of the cloud, enterprises must consider how to industrialize the application delivery process across each layer of the cloud embracing the cloud operating model, and tuning people, process, and tools to it.
This whitepaper looks at four specific areas across infrastructure, security, networking and application delivery on Microsoft Azure.
Setting the stage. The shift from a static to dynamic environment: The transition to cloud, and hybrid-cloud, environments is a generational transition for IT. This transition means shifting from largely dedicated servers in a private datacenter to a pool of compute capacity available on demand. The cloud presents an opportunity for speed and scale optimization for new “systems of engagement” - the applications built to engage customers and users. These new apps are the primary interface for the customer to engage with a business, and are ideally suited for delivery in the cloud as they tend to:
- Have dynamic usage characteristics, needing to scale loads up and down by orders of magnitude during short time periods.
- Be under pressure to quickly build and iterate. Many of these new systems may be ephemeral in nature, delivering a specific user experience around an event or campaign.
For most enterprises, these systems of engagement must connect to existing “systems of record” — the core business databases and internal applications, which often continue to reside on infrastructure in existing data centers. As a result, enterprises end up with a hybrid — a mix of multiple public and private cloud environments.
As the implications of the cloud operating model impact teams across infrastructure, security, networking, and applications, we see a repeating pattern amongst enterprises of establishing central shared services — centers of excellence — to deliver the dynamic infrastructure necessary at each layer for successful application delivery.
When working with customers on Microsoft Azure, cloud implementation is an iterative process for migrating and modernizing the digital estate, aligned with targeted business outcomes and change management controls. During each iteration, workloads are migrated or modernized in alignment with the strategy and plan. Decisions regarding IaaS, PaaS, or hybrid are made during the assess phase of the Migrate methodology to optimize control and execution. Those decisions will drive the tools used during each iteration of the migration phase within the same methodology.
The challenge for most enterprises then is how to deliver these applications to the cloud with consistency while also ensuring the least possible friction across the various development teams.

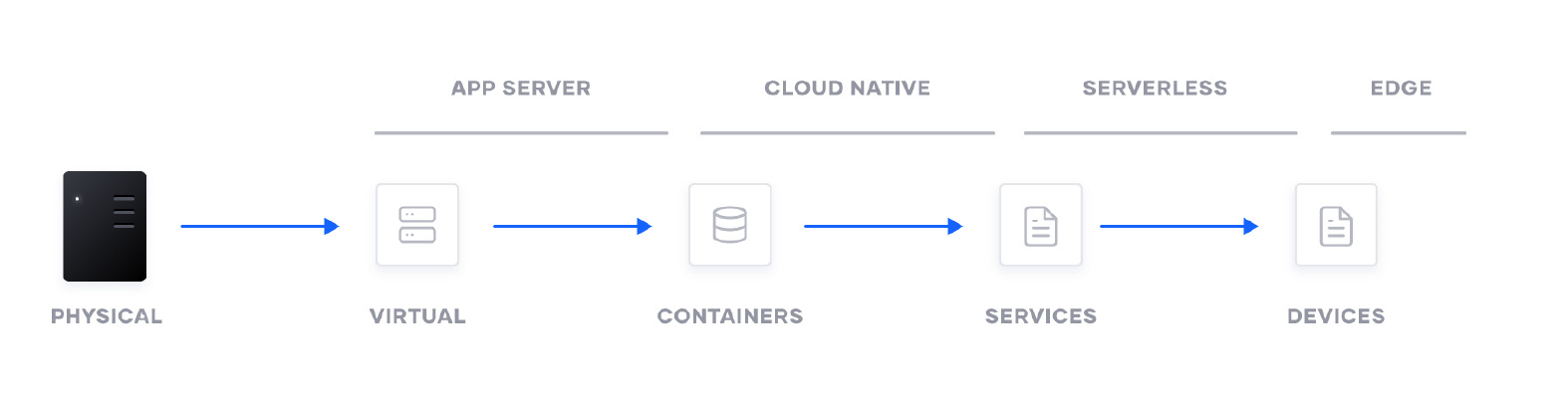

Compounding this challenge, the underlying primitives have changed from manipulating Virtual Machines in a self-contained environment, to manipulating cloud ‘resources’ in a shared environment. Enterprises then have competing operational models to maintain their existing estate, while developing the new cloud infrastructure.
For cloud computing to work, there needs to be consistent workflows that can be reused at scale across multiple cloud providers. This requires:
- Consistent instruction sets for provisioning
- Service-based networking for applications
- Identity-based access management
Implications of the Cloud Operating Model

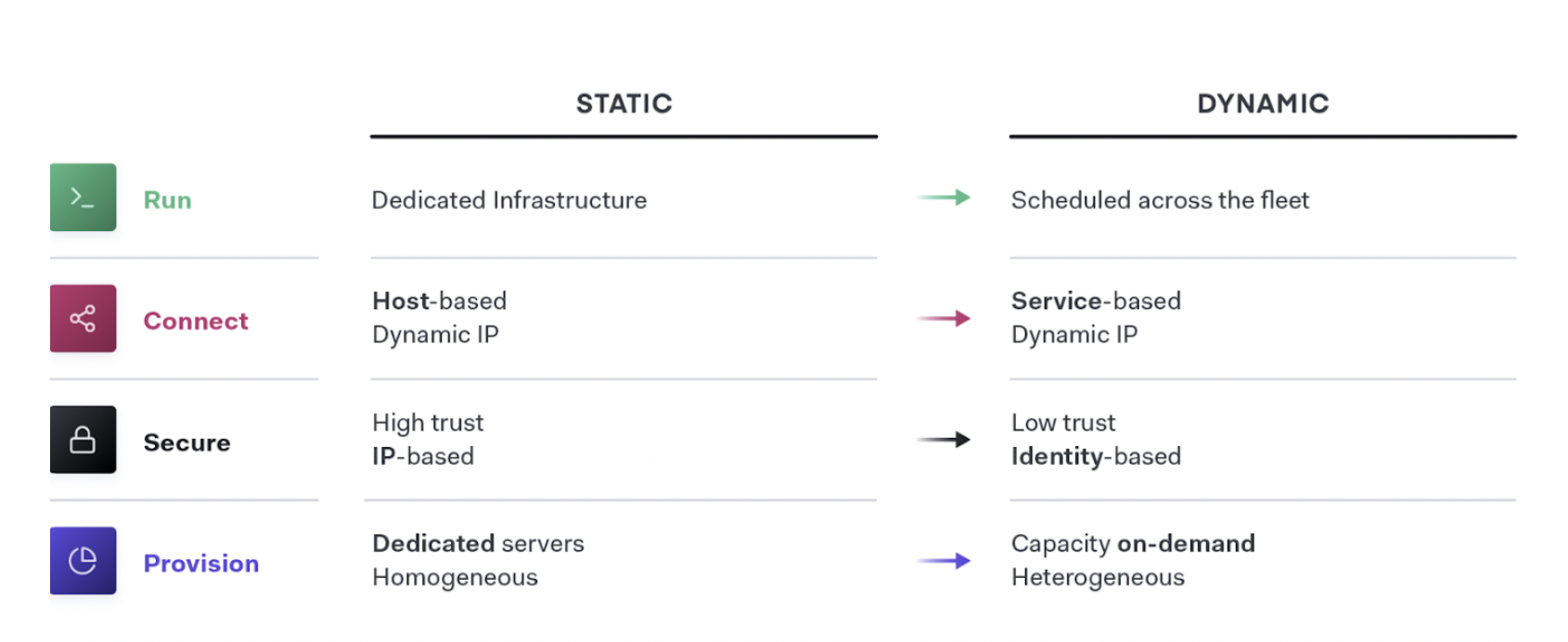

The essential implication of the transition to the cloud is the shift from “static” infrastructure to “dynamic” infrastructure from a focus on configuration, and management of a static fleet of IT resources, to provisioning, securing, connecting, and running dynamic resources on demand.
Together, Microsoft and HashiCorp tools come together to help both IT and the business units align on a clear strategy and plan to guide implementation activities. As teams deliver on each shared service for the cloud operating model, IT velocity increases. The greater cloud maturity an organization has, the faster its velocity.
The typical journey we have seen customers adopt, as they unlock the cloud operating model, involves three major milestones;
- Establish the cloud essentials - As you begin your journey to the cloud, the immediate requirements are provisioning the cloud infrastructure typically by adopting infrastructure as code and ensuring it is secure with a secrets management solution. These are the bare necessities that will allow you to build a scalable and truly dynamic cloud architecture that is futureproof.
- Standardize on a set of shared services - As cloud consumption starts to pick up, you will need to implement and standardize on a set of shared services so as to take full advantage of what the cloud has to offer. This also introduces challenges around governance and compliance as the need for setting access control rules and tracking requirements become increasingly important.
- Innovate using a common logical architecture - As you fully embrace the cloud and depend on cloud services and applications as the primary systems of engagement, there will be a need to create a common logical architecture. This requires a control plane that connects with the extended ecosystem of cloud solutions and inherently provides advanced security and orchestration across services and multiple clouds.
Infrastructure Automation with Terraform
Terraform and Azure: Infrastructure as code
Over the last five years HashiCorp and Microsoft have partnered closely in continually developing Terraform, and empowering organizations with the scalability and flexibility of infrastructure as code (IAC). HashiCorp Terraform codifies infrastructure in configuration files that describe the topology of cloud resources. These resources include virtual machines, storage accounts, and networking interfaces. The Terraform CLI provides a simple mechanism to deploy and version the configuration files to Microsoft Azure. This is truly a hybrid and multi-cloud implementation that connects customers private cloud infrastructure using Hyper V, as we all as their public-cloud deployment with Azure.
Organizations need the right tools to empower engineers to work on problem solving and not submitting or waiting on requests for provisioning. Teams need to deploy the same code to multiple regions and multiple environments in a consistent and safe manner.
With Terraform you can provision environments in under an hour and applications move rapidly from [dev-test] to production. Environments are easily reproducible and there's no risk from patching because they can test exact infrastructure templates. Additional benefits of Terraform on Azure:
HashiCorp and the community. Better together
Integrating with GitHub helps realize the value of version-controlled infrastructure with Terraform. In addition to providing a single, familiar view where Terraform users can see the status and impact of their changes, the integration also brings about continuous integration and testing for infrastructure changes. The consistent GitHub workflow pairs well with HashiCorp's goals of providing a technology-agnostic workflow for provisioning, securing, and running any infrastructure for any application. For more, explore the GitHub repository
Streamline operations and provision any infrastructure more securely and efficiently with Terraform Enterprise. Centralize infrastructure deployment within one workflow and provision, govern, and audit any environment.
Leveraging Terraform on Azure
Leveraging Terraform on Azure empowers you to gain flexibility, security, and collaboration across your organization.

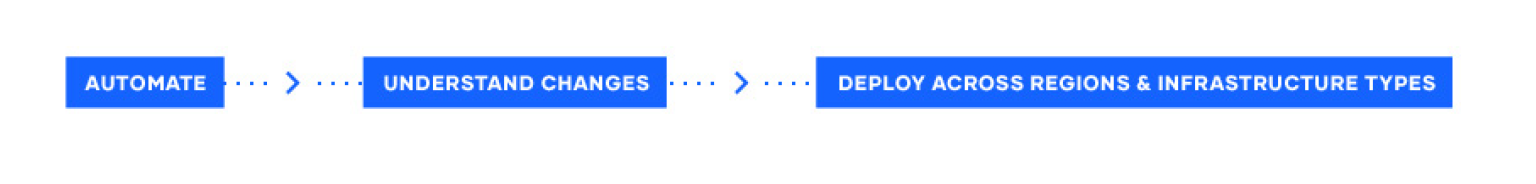

Automate infrastructure management
Terraform's template-based configuration files enable you to define, provision, and configure Azure resources in a repeatable and predictable manner. Automating infrastructure has several benefits:
- Lowers the potential for human error while deploying and managing infrastructure.
- Deploys the same template multiple times to create identical development, test, and production environments.
- Reduces the cost of development and test environments by creating them on-demand.
Understand infrastructure changes before being applied
As a resource topology becomes complex, understanding the meaning and impact of infrastructure changes can be difficult. The Terraform CLI enables users to validate and preview infrastructure changes before application. Previewing infrastructure changes in a safe manner has several benefits:
- Team members can collaborate more effectively by quickly understanding proposed changes and their impact.
- Unintended changes can be caught early in the development process
Deploy infrastructure to multiple environments on-premises or in the cloud
Terraform is adept at deploying an infrastructure across multiple cloud and on-premises providers. It enables developers to use consistent tooling to manage each infrastructure definition.
Learn how to use Terraform to reliably provision virtual machines and other infrastructure on Azure. Terraform on Azure documentation - https://docs.microsoft.com/azure/terraform
Building a zero-trust security model with Vault and Azure
Secrets, encryption, protection
Most organizations today have the issue of secrets sprawl. These secrets include database passwords, certificates, and private keys that should be constantly protected. However, this should not impact the speed and reliability with which code is shipped. Working with Microsoft, HashiCorp launched Vault with a number of features to make secrets management easier to automate in Azure cloud.
Vault offers a wide array of Secrets Engines that go far beyond just basic K/V management. Vault Secrets Engines can manage dynamic secrets on certain technologies like Azure Service Principles, Databases and Datastores. These secrets are both time and access bound, which often eliminates the need to rotate secrets. Dynamic secrets help reduce the blast damage of any leaked secrets or compromised systems because every authenticated entity will have a unique set of credentials.
This section of the cloud operating model, will cover five key areas:
- Hybrid Security.
- Encryption as a service.
- Secrets Management.
- Advance data protection.
- Vault and Azure integrations.
Dynamic cloud infrastructure means a shift from host-based identity to application-based identity, with low- or zero-trust networks across multiple clouds without a clear network perimeter. In the traditional security world, we assumed high trust internal networks, which resulted in a hard shell and soft interior. With the modern “zero trust” approach, we work to harden the inside as well. This requires that applications be explicitly authenticated, authorized to fetch secrets and perform sensitive operations, and tightly audited.
HashiCorp Vault enables teams to securely store and tightly control access to tokens, passwords, certificates, and encryption keys for protecting machines and applications. This provides a comprehensive secrets management solution. Beyond that, Vault helps protect data at rest and data in transit. Vault exposes a high-level API for cryptography for developers to secure sensitive data without exposing encryption keys. Vault also can act like a certificate authority, to provide dynamic short-lived certificates to secure communications with SSL/TLS. Lastly, Vault enables a brokering of identity between different platforms, such as Active Directory on premises and other IAM services to allow applications to work across platform boundaries.
To achieve shared services for security, IT teams should enable centralized secrets management services, and then use that service to deliver more sophisticated encryption-as-a-service use cases such as certificate and key rotations, and encryption of data in transit and at rest.
Encryption as a Service
Using Vault as a basis for encryption-as-a-service solves difficult problems faced by security teams such as certificate and key rotation. Vault enables centralized key management to simplify encrypting data in transit and at rest across clouds and data centers. This helps reduce costs around expensive Hardware Security Modules (HSM) and increases productivity with consistent security workflows and cryptographic standards across the organization.
Enterprises need to encrypt application data at rest and in transit. Vault can provide encryption-as-a-service to provide a consistent API for key management and cryptography. This allows developers to perform a single integration and then protect data across multiple environments.
While many organizations provide a mandate for developers to encrypt data, they don’t often provide the “how” which leaves developers to build custom solutions without an adequate understanding of cryptography. Vault provides developers a simple API that can be easily used, while giving central security teams the policy controls and lifecycle management APIs they need.
Secure dynamic infrastructure across clouds and environments The shift from static, on-premise infrastructure to dynamic, multi-provider infrastructure changes the approach to security. Security in static infrastructure relies on dedicated servers, static IP addresses, and a clear network perimeter. In a dynamic infrastructure is defined by ephemeral applications and servers, trusted sources of user and application identity, and software-based encryption.
The first step in cloud security is typically secrets management: the central storage, access control, and distribution of dynamic secrets. Instead of depending on static IP addresses, integrating with identity-based access systems such as Azure AD to authenticate and access services and resources is crucial.
Vault uses policies to codify how applications authenticate, which credentials they are authorized to use, and how auditing should be performed. It can integrate with an array of trusted identity providers such as cloud identity and access management (IAM) platforms, Kubernetes, Active Directory, and other SAML-based systems for authentication. Vault then centrally manages and enforces access to secrets and systems based on trusted sources of application and user identity.
Enterprise IT teams should build a shared service which enables the request of secrets for any system through a consistent, audited, and secured workflow.
Advanced Data Protection
Organizations moving to the cloud or spanning hybrid environments still maintain and support on-premise services and applications that need to perform cryptographic operations, such as data encryption for storage at rest. These services do not necessarily want to implement the logic around managing these cryptographic keys, and thus seek to delegate the task of key management to external providers. Advanced Data Protection allows organizations to securely connect, control, and integrate advanced encryption keys, operations, and management between infrastructure and Vault Enterprise, including automatically protecting data in MySQL, MongoDB, PostgreSQL, and other databases using transparent data encryption (TDE).
For organizations that have high security requirements for data compliance (PCIDSS, HIPAA, etc), protecting data, and cryptographically-protecting anonymity for personally identifiable information (or PII), Advanced Data Protection provides organizations with functionality for data tokenization, such as data masking, to protect sensitive data, such as credit cards, sensitive personal information, bank numbers, etc.
Vault and Azure-specific integrations Azure users can leverage all of these Vault features to automate their secrets management and retrieval through Azure specific integrations. First and foremost Vault can be automatically unsealed using KMS keys from Azure Key Vault. Next, MSI credentials can be used to authenticate systems and applications preventing the need to distribute initial access credentials. Lastly, Vault can dynamically generate Azure Service Principals and role assignments. This allows users and applications off-cloud an easy method for generating flexible time and permission bound access into Azure APIs.
If you would like a quick way of testing out Vault in Azure, this GitHub repo contains all the code to create a Vault environment in Azure including all instructions on how to obtain Terraform, run it, connect to your Azure instance and run the Vault commands. This is a great way to learn the concepts covered here with a low barrier to entry.
More information on HashiCorp Vault and How Microsoft Azure works with the HashiCorp Product Suite can be found here: https://www.hashicorp.com/integrations/microsoft?product=vault
Connect, Secure and Service with HashiCorp Consul
HashiCorp Consul is a distributed, highly available service networking platform that can run atop infrastructure in Azure, including on-premise environments and in multiple regions around the world. Consul helps organizations automate networking configurations, enable services to discover one another, and automatically provides secure connectivity between these services.
Addressing Service Discovery Challenges
In the journey towards widely distributed software systems and microservices-based architectures some interesting challenges emerge. One of the first ones that organizations encounter is “how do you keep track of all your deployed services?” For example, if Service A is an application deployed into the cloud (web service), how does it know how to find Service B (a database)? In the pre-digital transformation world, a developer would file a ticket to an operator, who would then update the routing tables with IP address of Service B and enable access for service A. If service B is moved, then the developer will need to file another ticket to update those tables to ensure that Service B is still reachable. In cloud, service deployment is a much faster process. Resolving issues like service relocation can cause major slowdowns in the application lifecycle and cause friction between operators and developers.
This is where Consul can help. When Consul is deployed onto a modern hybrid cloud platform like Microsoft Azure, operators can automate the service discovery process. Developers provide a service definition with their applications and Consul captures any configuration changes to services deployed in Azure (such as feature flag updates). These changes are then propagated across the datacenter rapidly, avoiding the inconsistent state that could bring distributed systems down.
Service Networking Automation
Leveraging Consul for Service Discovery introduces developers to the benefits of having a centralized registry to track services. While this addresses the visibility challenge of tracking services across environments, another common bottleneck arises from trying to leverage traditional networking middleware for managing larger service deployments. According to a recent report from ZK Research, a majority of enterprises state that common networking tasks, like provisioning new load balancers, can take days, weeks, and sometimes months. As noted above, this limits the benefits of the cloud as the time to deploy slows down with organizations still relying on manual ticketing processes. The teams responsible for these tasks can also benefit from the automation capabilities that Consul provides.
Consul offers the ability to automate networking configurations for these devices eliminating the need for manual intervention. Instead of a manual, ticket-based process to reconfigure the traditional network middleware every time there is a change in service network location or configurations; Consul provides a publisher/subscriber (PubSub) like service to automate these operations by updating configuration changes of the network devices. Terraform can also be used to enable rapid day zero operations of the resources used when provisioning new infrastructure.
The newly added service instances will automatically “publish” their location information with the service registry. The network infrastructure can subscribe to service changes from the service registry (by using tools like Consul Template or native integration). This enables a publish/subscribe style of automation that can handle highly dynamic infrastructure and scale much higher.
Modern Application Networking with Service Mesh
Moving further in the process, as organizations continue to scale into microservices-based or cloud-native applications (like Azure Kubernetes Service), the underlying infrastructure becomes larger and more dynamic. Modular services need to communicate with each other to compose business logic and functionality, leading to an explosion of east-west traffic.
Existing networking approaches with network appliances cannot effectively handle east-west traffic in dynamic settings. They cause a proliferation of expensive network infrastructure, introduce single points of failure all over the system and add significant operational overhead to IT teams.
Furthermore, application based networking has driven significantly more complex requirements on traditional network teams than existed before. With significant amounts of workloads becoming ephemeral, as well as being highly distributed as microservices, the ability to successfully route and lifecycle application traffic across the network without downtime becomes critical to organizations.
A distributed service mesh pushes routing, authorization and other networking functionalities to the endpoints in the network, rather than imposing them through a central point in the infrastructure. This makes the network topology simpler and easier to manage, it removes the need for expensive central infrastructure within east-west traffic paths, and it makes service-to-service communication much more reliable and scalable because of the network’s decentralized nature. Additionally, it removes the dependency for development teams to incorporate routing and authorization rules directly in application code.
Consul provides an API driven control plane, which integrates with sidecar proxies alongside each service instance (such as Envoy, HAProxy, and Nginx) that provide the distributed data plane.
The service mesh approach allows critical functionality like naming, segmentation and authorization, traffic management and observability to be configured through policies in the central registry and to be enforced by proxies at the endpoint where an individual service is running.
Consul enables a zero trust network model by securing service-to-service communication with automatic mutual TLS encryption and identity-based authorization. Network operation and security teams can define the security policies through intentions with logical services rather than IP addresses. For example, allowing web services to communicate with databases, instead of IP1 to IP2. Proxies will enforce security consistently regardless of how services scale up and down or migrate to other platforms.
The security benefits of a service mesh based approach are several fold. For most organizations, traffic within a network zone (such as production or PCI) is relatively flat. This means a compromise of a single service would allow an attacker to move laterally to other systems in the same zone. Consul enables a much more fine grained authorization of access to avoid this.
Consul can also be integrated with services like Vault for centralized PKI and certificate management.
To address the application networking concerns, layer 7 routing and traffic policy management is provided by Consul and enforced by routing traffic based many possible conditions (HTTP header, path based routing, etc.) to support use cases such as canary, A/B testing and gradual application deployment rollouts, and application lifecycle efforts. These practices have become the foundation of progressive delivery for applications in the enterprise and can only be effectively achieved leveraging a service mesh. For cross-cloud communications, Consul’s Mesh Gateway feature routes traffic to the correct endpoint on a private network without requiring expensive IPSec or MPLS connectivity.
Consul, Containers and AKS
Consul can also successfully extend modern container management platforms such as Azure Kubernetes Services (AKS) and Azure Service Fabric. While both Kubernetes and Service Fabric provide their own service discovery and health checking mechanisms, Consul allows those platforms to integrate with services that reside outside of their management boundary. For example, a web service or a database running outside of the Kubernetes cluster, and even potentially in on-prem data center, can be configured to be discoverable by services deployed on Kubernetes via Consul.
Empowering customers together
“The visibility, transparency, and control we have with Consul eliminates so many of the service discovery and connectivity obstacles that used to prevent us from working as quickly and efficiently as we wanted… Consul lets us spread more than 200 microservices over several AKS clusters. Each AKS cluster connects to a local Consul client, which feeds into a Consul cluster that forms a larger service discovery mesh that allows us to find and connect services in a matter of minutes with minimal effort.” Sriram Govindarajan, Principal Infrastructure Engineer, Mercedes-Benz Research & Development (MBRDNA)
The benefits of a single control plane
- Consul provides the control plane for multi and hybrid-cloud networking.
- Centrally control the distributed data plane to provide a scalable and reliable service mesh
- Automate centralized network middleware configuration to avoid human intervention
- Provide a real-time directory of all running services to improve application inventory management
- Enable visibility into services and their health status to enhance health and performance monitoring
- Automate lifecycle management of certificates which can be issued by 3rd party Certificate Authority
- Provide unified support across a heterogeneous environment with different workload types and runtime platforms
Leveraging HashiCorp Consul with Azure
- Enable services running in any Azure region or on-premise environment to discover one another quickly and efficiently.
- Reduce deployment time of applications using Consul’s dynamic load balancing features with existing middleware (like F5, NGINX, or HAProxy).
- Enhance the Kubernetes experience by leveraging AKS and Consul’s service mesh capabilities.
Hybrid-Cloud Application Delivery
Finally, at the application layer, new apps are increasingly distributed while legacy apps also need to be managed more flexibly. HashiCorp Nomad provides a flexible orchestrator to deploy and manage legacy and modern applications, for all types of workloads: from long running services, to short lived batch, to system agents. To achieve shared services for application delivery, IT teams should use Nomad in concert with Terraform, Vault, and Consul to enable the consistent delivery of applications on cloud infrastructure, incorporating necessary compliance, security, and networking requirements, as well as workload orchestration and scheduling.
Mixed Workload Orchestration
Many new workloads are developed with container packaging with the intent to deploy to Kubernetes or other container management platforms, but many legacy workloads will not be moved onto those platforms, nor will future Serverless applications. Nomad provides a consistent process for deployment of all workloads from virtual machines, through standalone binaries, and containers, and provides core orchestration benefits across those workloads such as release automation, multiple upgrade strategies, bin packing, and resilience. Nomad provides the same consistent workflow at scale in any environment. Nomad is focused on simplicity and effectiveness at orchestration and scheduling, and avoids the complexity of platforms such as Kubernetes that require specialist skills to operate and solve only for container workloads.
High Performance Compute
Nomad is designed to schedule applications with low latency across very large clusters. This is critical for customers with large batch jobs, as is common with High Performance Computing (HPC) workloads. In the million container challenge, Nomad was able to schedule one million instances of Redis across 5,000 machines in three data centers, in under 5 minutes. Several large Nomad deployments run at even larger scales.
Multi-Datacenter Workload Orchestration
Nomad is multi-region and multi-cloud by design, with a consistent workflow to deploy any workload. As teams roll out global applications in multiple data centers, or across cloud boundaries, Nomad provides orchestrating and scheduling for those applications, supported by the infrastructure, security, and networking resources and policies to ensure the application is successfully deployed.
The transition to cloud, and hybrid-cloud, environments is a generational transition for IT. For most enterprises, this transition means shifting from a static to dynamic environment and focusing on developing your Azure migration plan around people, process, and tools to drive the right outcomes for your organization.
Aligning People, Process, and Tools to the Azure migration Journey
1. Create a cloud migration plan By establishing your cloud migration priorities and objectives before you start planning, you can ensure a more successful migration. Automated cloud migration tools will also provide insights into your environment and dependencies to build out your cloud migration project plans.
2. Involve stakeholders Reach out to key people throughout the organization—this should include representation from both IT and the involved business owners. Getting everyone’s engagement and support before you migrate will lead to a smoother, faster cloud migration process that meets everyone’s goals.
3. Calculate your TCO Evaluate the potential cost savings of migrating to Azure by calculating and comparing your total cost of ownership (TCO) for Azure with that of a comparable on-premises deployment. Leverage the TCO documentation for leveraging HashiCorp tools to help accelerate Azure migration plans; https://www.terraform.io/docs/cloud/cost-estimation/azure.html
4. Discover and evaluate apps To start any migration, compile an inventory of the physical and virtual servers in your environment. While your current management tools may provide a good representation of the hundreds—maybe thousands—of applications your organization is running, you need an inventory mechanism that can feed data into subsequent steps.
*People, Process, and Tools: *
People: Shifting to hybrid-cloud skills
- Reuse skills from internal data center management and single cloud vendors and apply them consistently in any environment.
- Embrace DevSecOps and other agile practices to continuously deliver increasingly ephemeral and distributed systems.
Process: Shifting to self-service IT
- Position Central IT as an enabling shared service focused on application delivery velocity: shipping software every more rapidly with minimal risk.
- Establish centers of excellence across each layer of the cloud for self-service delivery of capabilities.
Tools: Shifting to dynamic environments
- Use tools that support the increasing ephemerality and distribution of infrastructure and applications and that support the critical workflows rather than being tied to specific technologies.
- Provide policy and governance tooling to match the speed of delivery with compliance to manage risk in a self-service environment.
About HashiCorp & Microsoft. Better together
HashiCorp and Microsoft are longstanding partners in the cloud infrastructure community. In 2017, Microsoft committed to a multi-year partnership aimed at further integrating Azure services with HashiCorp products. As a result of this collaboration, organizations can rely on tools like Terraform to create and manage Azure infrastructure. The tight integration and support for Azure allows operators to easily deploy resources on Azure using Terraform and secure them via Vault. Additionally, Microsoft utilizes HashiCorp tools for internal use. Packer is trusted for the creation of new Linux images for Azure services. This collaboration enables Microsoft and HashiCorp to create new and innovative ways for their products to integrate further, easing the cloud adoption journey for enterprise organizations
